Product Description:

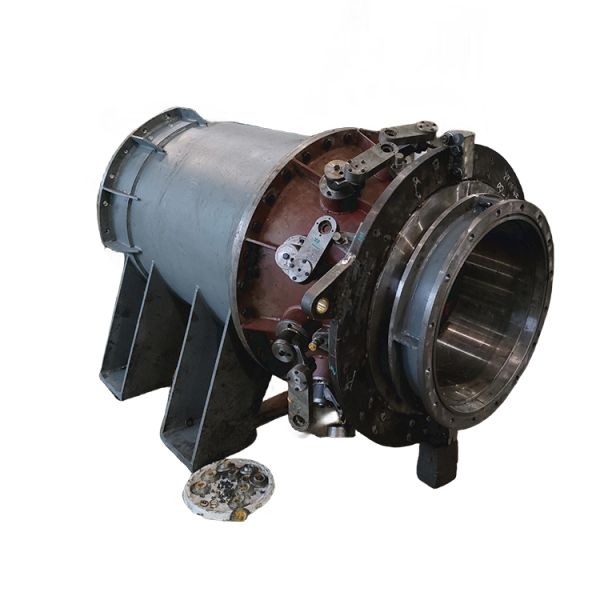

The High Head Water Turbine is a highly efficient and robust solution designed for harnessing hydroelectric power from significant water head heights. Specifically engineered to operate optimally at a water head of 180 meters, this turbine stands out as a superior choice for energy generation in mountainous or elevated regions where water flows from considerable heights. With a runner diameter of 1.0 meter, the turbine is compact yet powerful, making it suitable for a wide range of hydroelectric projects.
One of the key features of this High Head Water Turbine is its impressive headrange capability, spanning from 50 to 700 meters. This extensive range allows the turbine to adapt to different site conditions and water flow variations, providing flexibility and reliability for diverse hydroelectric installations. Whether the project demands operation at moderate heads or very high heads, this turbine can deliver consistent performance and maximize energy output.
The turbine is equipped with a tubular generator, an advanced component known for its streamlined design and enhanced efficiency. The tubular generator integrates seamlessly with the turbine runner, reducing mechanical losses and improving the overall energy conversion rate. This integration not only results in more power generation but also contributes to a compact and easy-to-maintain system, which is highly valued in remote or challenging environments.
Constructed from high-quality stainless steel, the runner material ensures exceptional durability and resistance to corrosion. Stainless steel runners maintain their structural integrity even under harsh operating conditions, such as high water pressure and abrasive particles in the water. This material choice extends the lifespan of the turbine and reduces maintenance costs over time, making the High Head Water Turbine a cost-effective investment for long-term hydroelectric projects.
Another distinguishing attribute of this turbine system is its advanced control system featuring brushless excitation technology. The brushless excitation system enhances the reliability and efficiency of the turbine’s operation by offering precise control over the generator's output without the need for regular maintenance associated with brushes and slip rings. This modern control mechanism optimizes the power generation process, ensures stable voltage and frequency, and reduces the risk of mechanical failures, thereby increasing the overall system uptime.
The tubular turbine design employed in this product is renowned for its compact structure and ease of installation. Unlike conventional turbines, tubular turbines are mounted horizontally, which simplifies the civil engineering works and reduces the construction time and costs. This design is particularly advantageous for sites with limited space or where environmental impact needs to be minimized. The horizontal layout also facilitates easier access for inspection and maintenance, contributing to lower operational expenses.
Combining the tubular turbine with a tubular generator results in a highly integrated hydroelectric power unit that is both efficient and reliable. This combination is ideal for small to medium-scale hydropower plants where maximizing energy extraction from available water head is crucial. The synergy between the tubular turbine and tubular generator ensures smooth operation, minimal vibration, and excellent performance under varying load conditions.
In summary, the High Head Water Turbine is a state-of-the-art hydroelectric solution that excels in high head environments with its 180-meter water head design and 1.0-meter runner diameter. Its extensive headrange of 50 to 700 meters allows adaptability across diverse projects, while the use of stainless steel for the runner guarantees durability and longevity. The integration of a brushless excitation control system enhances operational reliability and efficiency. The tubular turbine and tubular generator pairing offers a compact, efficient, and maintenance-friendly configuration, making this product an excellent choice for sustainable and cost-effective hydroelectric power generation.
Features:
-
Product Name: High Head Water Turbine
-
Runner Material: Stainless Steel
-
Runner Diameter: 1.0 M
-
Color: Blue
-
Operating Temperature: -10°C to 50°C
-
Type: Hydraulic Turbine
-
Compatible with tubular generator, axial flow generator, and bulb generator systems
Technical Parameters:
|
Model
|
XJ02-W-50/1*11
|
|
Color
|
Blue
|
|
Control System
|
Brushless Excitation
|
|
Type
|
Hydraulic Turbine
|
|
Keyword
|
High Head Water Turbine
|
|
Runner Material
|
Stainless Steel
|
|
Frequency
|
50Hz/60Hz
|
|
Guide Vane
|
Stainless Steel
|
|
Runner Diameter
|
1.0 M
|
|
Rotation
|
1000 RPM
|
Applications:
The Wawushan T-202501 High Head Water Turbine is a state-of-the-art axial flow turbine designed for efficient and reliable hydroelectric power generation. Originating from China, this hydro turbular turbine combines advanced engineering with durable materials, featuring a stainless steel guide vane and runner material that ensure long-lasting performance even under demanding conditions. With a runner diameter of 1.0 meter and a power range of 1400-2200 KW, the T-202501 model is ideal for various hydropower projects requiring medium to high power output.
This high head water turbine is perfectly suited for application in mountainous or hilly regions where water flow is fast and vertical drop is significant. The axial flow turbine design allows it to efficiently convert the kinetic energy of flowing water into mechanical energy, which is then transformed into electrical energy by the integrated tubular generator. The stainless steel construction of both the guide vane and runner ensures excellent corrosion resistance and durability, making it suitable for continuous operation in harsh environments with operating temperatures ranging from -10°C to 50°C.
Typical application scenarios for the Wawushan T-202501 include small to medium-sized hydroelectric power plants, river diversion projects, and irrigation systems that require clean and renewable energy sources. Its robust design makes it an excellent choice for remote locations where maintenance resources may be limited. Additionally, the turbine’s adaptability to varying flow rates and head heights allows it to be used in run-of-river installations, providing a sustainable and eco-friendly power solution.
The tubular generator integrated with the axial flow turbine enhances the compactness and efficiency of the overall system, reducing installation space and simplifying maintenance procedures. This combination is highly effective in harnessing the energy potential of narrow waterways or canals with high flow velocity. The Wawushan T-202501 not only ensures high efficiency but also supports environmental conservation by minimizing the ecological footprint of hydroelectric power generation.
In summary, the Wawushan T-202501 high head water turbine is an excellent choice for hydroelectric projects that demand reliable, high-performance axial flow turbines with a hydro turbular turbine configuration. Its stainless steel runner and guide vane, combined with a powerful tubular generator, provide a robust and efficient solution for sustainable energy production in a wide range of operating conditions and geographical locations.
Customization:
Wawushan offers customized product services for the High Head Water Turbine, model number T-202501, designed to meet your specific hydro energy needs. This hydraulic turbine, originating from China, features the advanced XJ02-W-50/1*11 model, providing a power range of 1400-2200 KW. Our customization options ensure optimal performance within an operating temperature range of -10°C to 50°C, making it suitable for various environmental conditions.
Equipped with a stainless steel guide vane, the turbine ensures durability and efficiency. Whether you require a bulb generator or a hydro turbular turbine, Wawushan can tailor the High Head Water Turbine to fit your project requirements. Our expertise in hydro turbular turbine technology guarantees a reliable and efficient solution for your hydroelectric power generation needs.
Support and Services:
Our High Head Water Turbine is designed to provide efficient and reliable performance for hydroelectric power generation in high head applications. To ensure optimal operation and longevity of your turbine, we offer comprehensive technical support and services.
Technical Support:
Our team of experienced engineers is available to assist with installation guidance, operational troubleshooting, and performance optimization. We provide detailed technical documentation, including installation manuals, operation guidelines, and maintenance schedules to help you maximize the turbine's efficiency.
Maintenance Services:
Regular maintenance is crucial for the reliable operation of the High Head Water Turbine. We offer scheduled maintenance programs, including inspection, lubrication, and replacement of wear parts to prevent unexpected downtime. Our technicians are trained to perform thorough diagnostics and repairs as needed.
Spare Parts Supply:
We maintain a comprehensive inventory of genuine spare parts to support timely replacement and minimize operational interruptions. Using original parts ensures compatibility and maintains the turbine's performance standards.
Upgrades and Retrofits:
To keep your turbine up-to-date with the latest technological advancements, we offer upgrade and retrofit services. These improvements can enhance efficiency, increase capacity, and extend the turbine's service life.
Training Programs:
We provide training sessions for your operational and maintenance staff to ensure they are equipped with the necessary knowledge and skills to manage the High Head Water Turbine effectively and safely.
Our commitment is to support you throughout the lifecycle of your High Head Water Turbine, ensuring maximum uptime and energy production. For detailed information about our support packages and services, please refer to the product documentation provided with your turbine.
